Hand moulding for large castings
Hand moulding makes single heavy parts and small series that automatic lines cannot take: castings up to 7500 × 1900 × 2000 mm, melted in induction furnaces of 4 and 20 t.
Capabilities
- Maximum size7500 × 1900 × 2000 mm
- Furnaces2 × 4 t + 1 × 20 t medium-frequency induction
- Minimum wall, cast iron6 mm
- Materialsgrey and ductile iron, cast steel
- Patternswooden
Typical parts

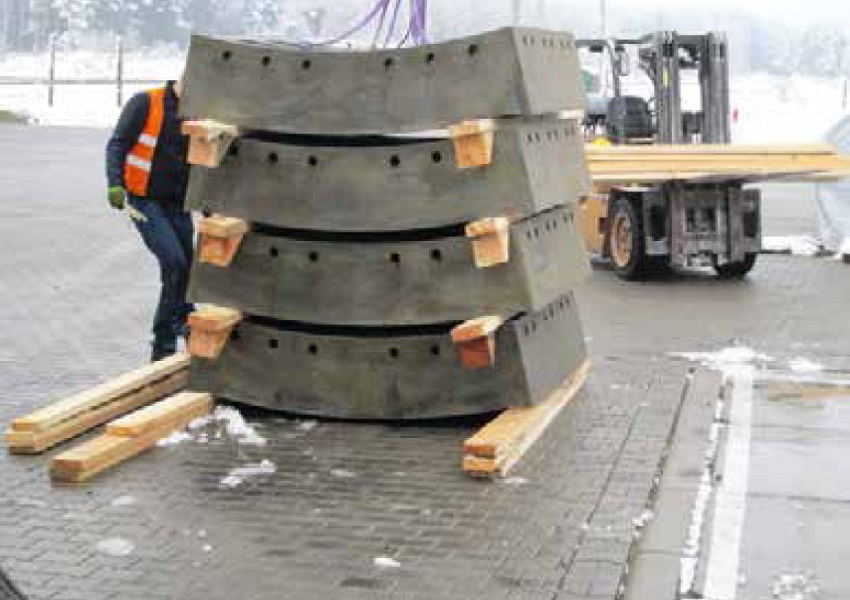

Machine-tool beds, tables, columns, headstocks and supports; gearbox housings, bodies and counterweights; rolls and heavy industrial parts. Steel and iron castings of up to 12,000 kg are produced at Huta Małapanew.
From drawing to casting
1
Drawing review
We check the drawing, material and feasibility with the foundry.
2
Pattern
The pattern is made, usually in wood, and approved with you.
3
Moulding and pouring
The mould is made by hand and poured from the induction furnaces.
4
Treatment and machining
Heat treatment, machining and painting can follow in house.
Questions
How large can a hand-moulded casting be?
Up to 7500 × 1900 × 2000 mm. Steel and iron castings up to 12,000 kg are produced at Huta Małapanew.
What is the minimum wall thickness?
6 mm in cast iron.
Can the castings be machined?
Yes. See CNC machining.
